Thermostat Options
 |

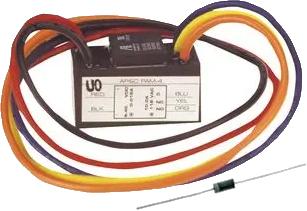

EXL03021 Relay 12-24Vdc coil with EMF diode |
| The Low Voltage Relay is used to convert an ON/OFF status from a PlasmaAir Ionizer to Dry Contacts for status with a EMS/BMS input. The relay is powered from a 12-24Vdc power source and provides Normally Open (NO) and Normally Closed (NC) contacts, a EMF diode is included. |
|
|
|
Your Price: $19.08 |
 |
|
 |
EXL03022 SS Plate with Green Indicator and Power Supply |
| The Stainless Steel plate with Green Indicator Lamp provides remote status for DC voltage sources from 12 to 24 Vdc. The included power supply will convert standard 24 Vac control power to 12 Vdc. This kit allows for remote indication from the ON/OFF status from a PlasmaAir Ionizer. |
|
|
|
Your Price: $53.80 |
|
|
 |

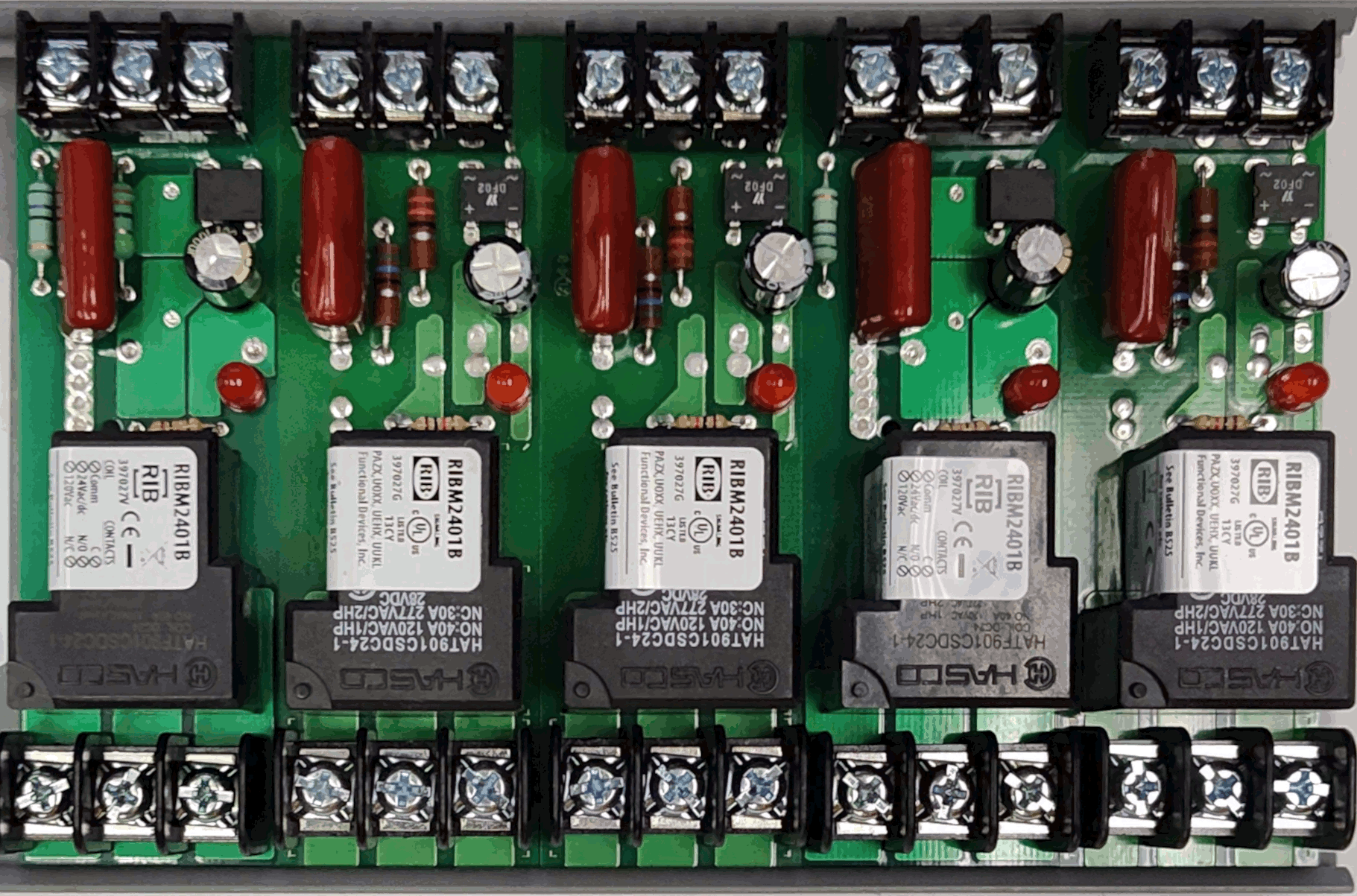

EXL03023 5 Relay Strip - 24VAC/DC or 120AC Relay 20A 120/277V |
| 5 Relays, including the mounting snap track.
The Low or Line Voltage Relay is controlled by a 24Vac, 24Vdc or 120Vac power source and provides Normally Open (NO) and Normally Closed (NC) contacts rated at 20A at up to 277 Vac. The Relay is used to interface from the ExactLogic low voltage Binary Outputs (BOs) to control Line Voltage devices - 120Vac to 277Vac or Higher Current Devices. |
|
|
|
Your Price: $105.00 |
|
|
 |

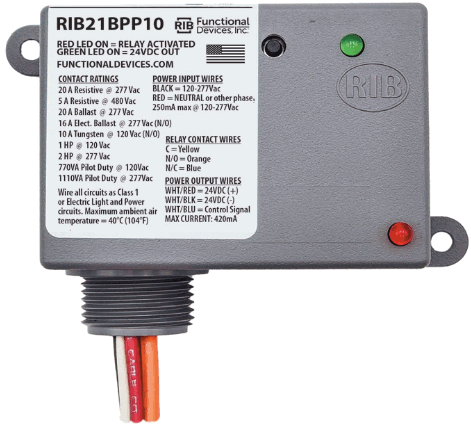

EXL03024 Relay 20A with 120-277 VAC to 24VDC Power Supply |
|
This relay provides 24VDC to power an ExactLogic controller with up to 420mA of current.
Use the EXL0324 Relay Power Pack to convert your line voltage application to operate with an ExactLogic controller. The Line Voltage Relay will switch the following loads, 277Vac 20A Resistive, 480Vac 5A Resistive, 277 Vac 20A Ballast, 277 Vac 16A Electronic Ballast N/O, 120Vac 10A Tungsten, 120Vac 1 HP, 277Vac 2 HP, 120Vac 770VA Pilot Duty, 277Vac 1110 VA Pilot Duty.
- Power Supply 24VDC at 420mA
- Relay 277Vac at 20A Resistive (one load / one Binary Output)
- Use EXL3013, EXL3018, EXL3019, EXL3021 or EXL3023 for additional line voltage loads
- Green lamp indicates the power supply is working
- Red lamp indicates when relay is on
- Test push button allows testing of the relay
|
|
|
|
Your Price: $120.24 |
|
|
 |

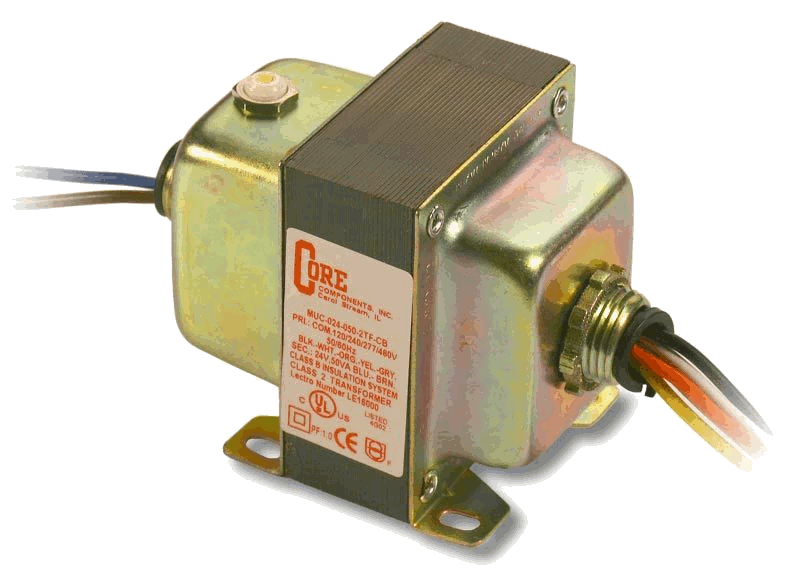

Transformer - 120-240-277-480Vac to 24Vac EXL03014 |
| The Low Voltage Transformer will convert primary voltages 120/240/277/480 to 24Vac for use with ExactLogic controllers and other low voltage devices. The power capacity is 50VA with a resettable circuit breaker. The EXL03014 Transformer has a primary input wiring hub and a secondary wiring output hub. |
|
|
|
Your Price: $22.68 |
|
|
|
